High-density & advanced research

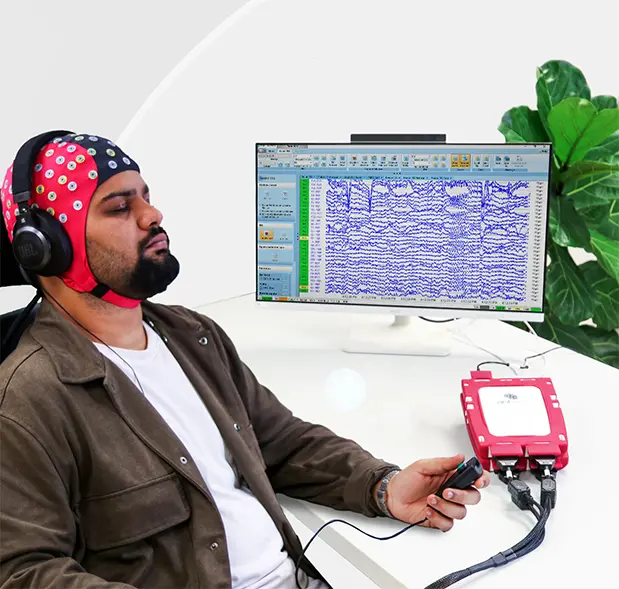

eego mylab
Modular EEG system for electrophysiology studies, BCI and cognitive neuroscience.
Up to 256 + 24 bipolar channels · 16 kHz
Contact salesEEG systems for research. Up to 256 channels.
eego amplifiers and waveguard caps for high-density lab studies, mobile recordings and real-time BCI. Tell us about your study and our application specialists prepare a demo for your setup.
256
EEG channels plus 24 bipolar inputs (eego mylab)
16 kHz
Max. sampling rate, 16,384 Hz (eego mylab)
CE IIa · FDA 510(k)
eego amplifier, MDR and US clearance
Sales and support in Berlin, Hengelo, Stevenage, Philadelphia, Melbourne and Hong Kong.
Request a free demo
Two short steps. No obligation. Step 1 of 2
eego systems
One amplifier family. Four ways to record.
Every eego system works with waveguard caps and the eego software for setup, impedance checks, monitoring and data export.
Mobile & real-world research

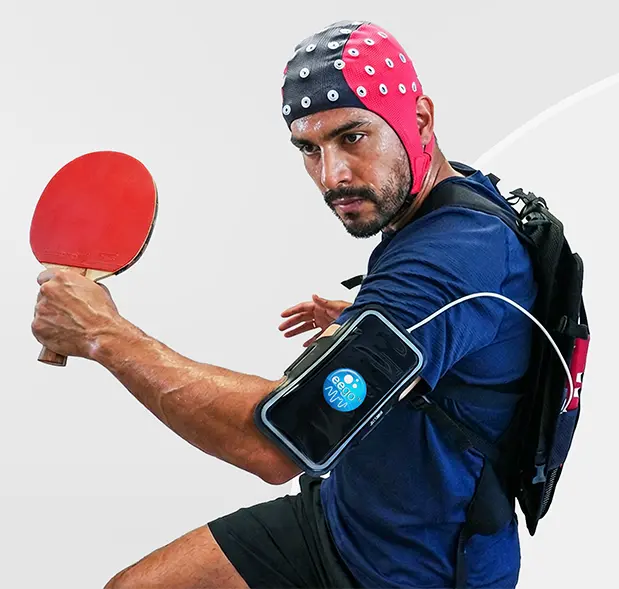

eego sports
Designed for field studies, sports science and immersive research environments.
8-128 channels · wireless via eego remote app
Controlled lab environments

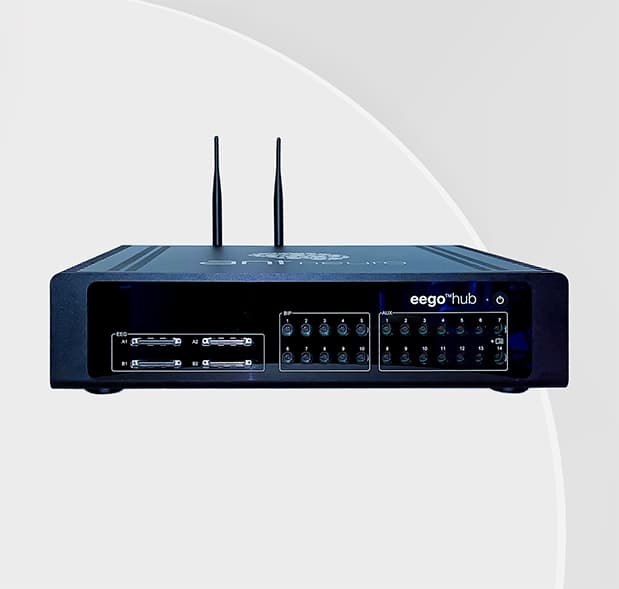

eego hub
For ERP studies, stationary lab set-ups and high-density EEG.
Real-time EEG

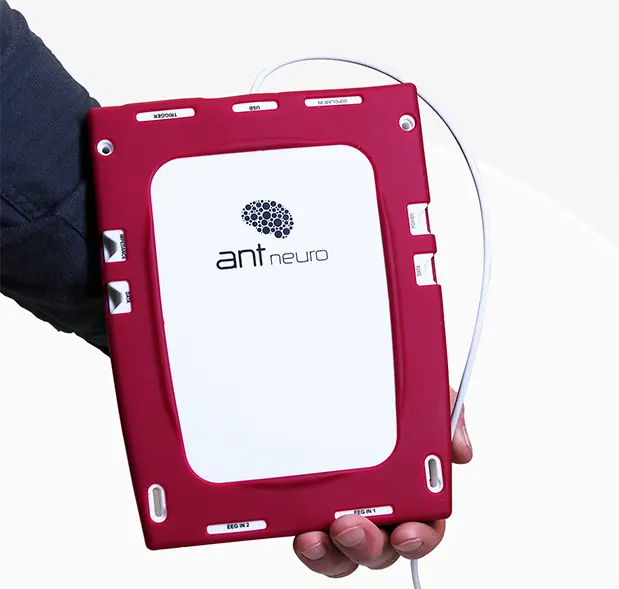

eego rt
For brain-computer interfaces, closed-loop applications and real-time EEG analysis.
Three things that slow EEG studies down.
The challenges researchers name most, and how eego addresses them.
Signal quality & data accuracy
Active shielding, high input impedance (> 1 GΩ) and up to 24-bit resolution keep data clean.
Setup time & participant comfort
waveguard net: simply soak, apply and record. Gel-free, with saline sponge electrodes.
Scalability & portability
From the 600 g eego mylab in the lab to the 24-channel eego sports amplifier at under 100 g in the field.

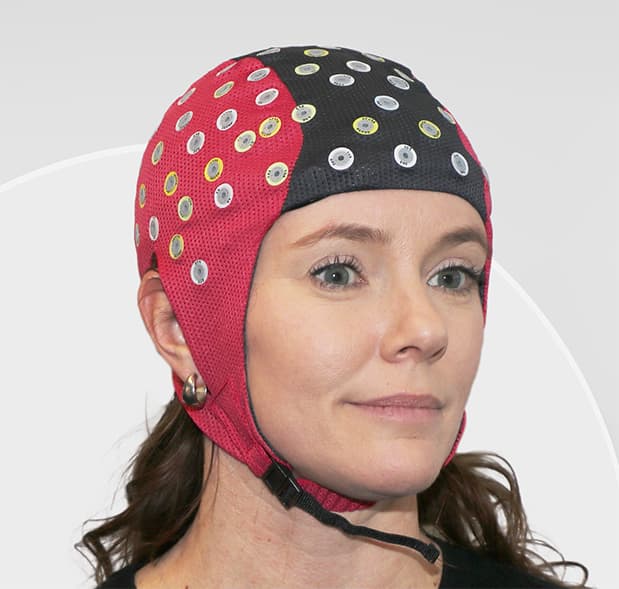

Caps for every protocol.
waveguard original
Ultra-thin wires and up to 256 channels. Supports simultaneous EEG with TMS, MEG or fMRI.
waveguard net
Saline-based and gel-free. 24 to 256 channels, from neonates to adults.
waveguard connect
Tin electrodes for integration with major clinical EEG systems.
waveguard touch
Ag/AgCl-coated dry electrodes for recording without gel.
Where eego is already recording.
Multi-center trial
AI-Mind
Following 1,000 early dementia patients for four years, with a high-density EEG measurement each year.
eego mylab · waveguard original
Sleep research
High-density sleep research
How sleep influences learning, memory and emotional regulation, and brain development during childhood.
eego mylab · waveguard original
Motor neuroscience
Duke University
Researchers studied how the brain translates intentions into movement, using ANT Neuro EEG technology.
waveguard original
Regulatory
Cleared for the lab and the clinic.
eego amplifier
CE Class IIa under MDR (EU) 2017/745, FDA 510(k) clearance, Health Canada MDL, ARTG registered.
waveguard caps
CE Class I medical devices under MDR. original, connect and net: FDA 510(k). touch: research use only in the USA and Canada.
Manufacturing
Made by eemagine Medical Imaging Solutions GmbH, Berlin. ISO 13485 certified.
Which eego system fits my study?
It depends on your setting: eego mylab for high-density and advanced research, eego sports for mobile recordings, eego hub for stationary lab set-ups and eego rt for real-time and BCI. Our application specialists confirm the setup with you.
How many channels can I record?
eego mylab supports up to 256 EEG channels plus 24 bipolar inputs. eego sports covers 8 to 128 channels.
Can I combine EEG with TMS, fMRI or MEG?
Yes. waveguard original supports simultaneous EEG recordings with TMS, MEG or fMRI, and eego mylab samples up to 16 kHz to capture fast events such as TMS pulses.
Do I need gel?
Not necessarily. waveguard net uses saline sponges, waveguard touch uses dry electrodes. waveguard original works with gel.
Does eego work with my stimulus software?
eego synchronizes external devices via LSL or TTL, for example E-Prime, Presentation, PsychoPy or eye trackers.
What does an eego system cost?
Prices depend on the configuration. Send us your study details and our sales team prepares an offer.
What warranty do I get?
2 years on the amplifier, 1 year on waveguard caps.
Ready to plan your next EEG study?
Tell us your research focus and channel count. Our team prepares a demo for your setup.
